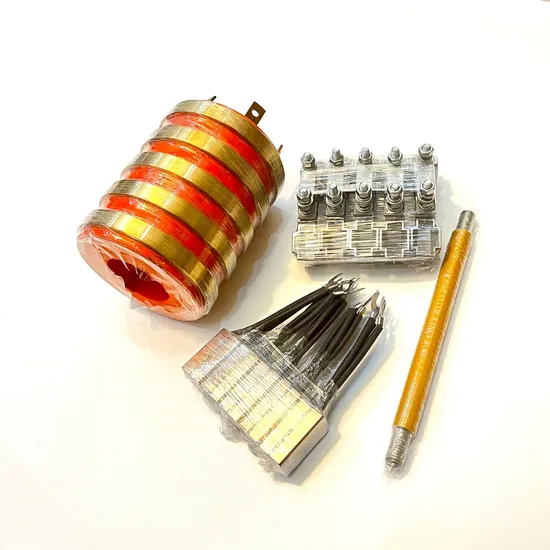

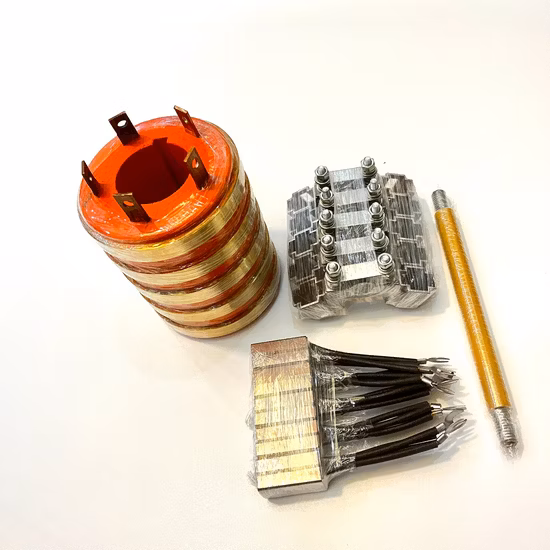

Integrated Encoder Slip Ring with Through hole Electrical Rotary Joint
Overview ECN038-04P4-12S is a new design integrated slip ring compatible with encoder and Electrical Rotary Joint From C;
Overview
Features
Basic Info.
Model NO. | ECN038-04P4-12S |
Inner Diameter | Ø38.0mm |
External Diameter | Ø99mm |
Lead wire length | Rotor : 300mm Stator : 500mm |
Lead wire size | AWG12#/17# Wire Teflon® UL |
Operating speed | 0-100 rpm |
Insulation resistance | ≥500MΩ@500VDC ≥300MΩ@100VDC |
Contact material | Precious Metal |
Electrical Noise | 30mΩ (50rpm) |
Circuits & Current | 4*20A; 1*PE; 12*Encoder |
Dielectric strength | ≥[email protected] (power) ≥[email protected] (signal) |
Voltage | 0~380VAC/VDC |
Transport Package | Carbon Box |
Specification | Precious metal / Alloy / Engineer plastic |
Trademark | CENO |
Origin | Shen Zhen, China |
Production Capacity | 50000pieces/Year |
Product Description
ECN038-04P4-12S is a new design integrated slip ring compatible with encoder and Electrical Rotary Joint From CENO Electronics. Typical Electrical conductive slip rings are part of a comprehensive rotary interface, in addition to the fiber passes data, Encoder and signal channels. CENO is also able to integrate many kinds of rotary unions to allow the transfer of encoder data, signals, liquid or gas across the rotary interface. And it is also common to incorporate other rotary components, such as motors, resolver and actuators into advanced rotary interface assemblies. These rotary interface solutions can be provided to meet unique environmental requirements. You are welcome for your specific applications.Features
- Integrated electrical and encoder
- Can be integrated various data, electrical power and signals
- Install easily & transmit stably
- High frequency bandwidth
- Automatic system
- Engineering Machinery
- Ship crane
- Offshore equipment
- Oil well drilling
- Circuit, Voltage, Current
- Channels
- Contact / Housing Materials
- Installations
- Working speed
Product Parameters
ECN038-04P4-12S | Specification |
Current & Circuits | 4 circuits*20A; 1*PE; 12circuit*Encoder |
Rating Voltage | 0~380VAC/VDC |
Dielectric strength | ≥[email protected]≥[email protected] |
Isolation resistance | ≥500MΩ@500VDC≥300MΩ@300VDC |
Electrical Noise | 30mΩ (50rpm) |
Contact material | Precious Metal |
Housing material | Aluminum Alloy |
Working temperature | -20°C~+60°C |
Working humidity | 60%RH |
IP protection grade | IP51 |
Operating speed | 0~100rpm |
Lead wire size | AWG12#/17# Wire Teflon® UL |
Lead wire length | Rotor : 300mmStator : 500mm |
Inner Diameter | Ø38.0mm |
External Diameter | Ø99mm |
Installation | Fix up stator side with anti-rotation side Shaft drives rotor running |
Outline drawing
